Metallographic pictures
1:PTFE＆Fiber mix
2:Cu90Sn10
3:Copper back
4:Anodized coating-Cu/Sn/Zinc

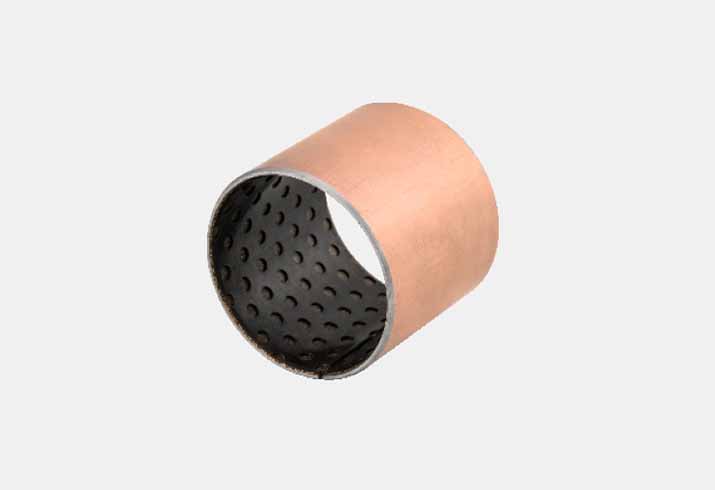

WGB-2 Marginal Self- lubricating Bearings
WGB-2 Marginal Self- lubricating Bearings,The product is based on high-quality low-carbon steel, sintered spherical bronze layer in the middle, and surface-rolled modified polyoxymethylene (POM). Under boundary lubrication conditions, it can be used for a long time without adding oil, and there are oil storage pits on the surface of the wear-resistant layer.
Tech. Data
|
Performance |
Data |
|
| Max. load P | Static | 250N/mm² |
| Dynamic | 150N/mm² | |
| Max. speed V | Grease lubrication | 2.5m/s |
| Max. PV | Grease lubrication | 2.8N/mm²・m/s |
| Friction coefficient μ | Grease lubrication | 0.05~0.25 |
| Temp. | -40℃～+130℃ | |
| Thermal conductivity | 4W/m・K | |
| Coefficient of thermal expansion | 12×10-6/K |
